America Embedded Smart Street Lamp Post AC EV Charger 110/240/380V-EV Charging & Pole-Integrated Chargers

< >

America Embedded Smart street Lamp Post AC EV Charger 110 240 380V

General product data

Version	Embedded AC EV charger for smart lamp poles; OCPP-enabled; nominal 21 kW@ 3-phase 380 V, with reduced output when operated on 1-phase 120V 240 V.
Product family	Smart Lamp Post Charger(OCPP)
Model	TDT-A3-3P-EV032
Manufacturer	Shenzhen TDT Co., Ltd.
Nominal electrical architecture	AC120V~240V/380V±10%, 32 A
Integrated communications	Wi-Fi, Bluetooth 5.0, Ethernet, RFID; optional 4G/LTE; OCPP 1.6J

Product overview

Application	AC charging for electric vehicles with on-board chargers.
Applicable scenario	Installation on smart street lamp poles and courtyard lamp poles
Integration concept	Embedded directly in the smart lamp pole/ compatible with lamp pole structure
Display	LED/Screen(Select one)

Performance specification

Input voltage	AC120V~240V/380V±10% 32 A
Input Frequency	50/60 Hz
Rated operating current	32 A
Rated output current	32A
Maximum output power	21 kW on 3-phase input; setup notes indicate approx. 7.36 kW when the same unit is operated from single-phase input.
Standby power	< 6 W
Source compatibility	Grid / Solar / Energy Storage systems.
Operation mode	Plug and Play / RFID / OCPP Protocol, Compatible with Third-party APP& Platform

Environmental and mechanical data

Operating temperature	-30 °C to+50 °C
Storage temperature	-30 °C to +70 °C
Operating humidity	5% to 95% RH, non-condensing
Working altitude	< 2000 m
Protection degree	IP54
MTBF	50,000 hours
Wiring mode	Bottom cable entry; Bottom / Front cable exit

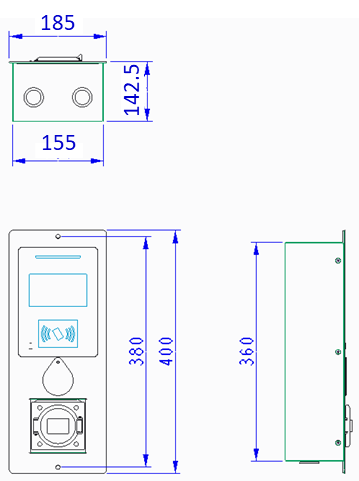

External dimensions	L×W×D: 400 × 185 × 142.5 mm Overall dimensions with tolerance: ±2.5 mm

Safety and standards

Protection functions	Overvoltage, Undervoltage, Overcurrent, Short-circuit, Leakage, Grounding Protection, Over-temperature& Low-temperature Protection. Lightning protection shall be installed separately by the user.
Leakage protection	Type A+ 6 mA DC sensitive RCCB(IEC 62955 compliant).
Charging/ connector standards	EN IEC 61851; EN 62196 Type 2.
Radio/ RED-related standardslisted in DoC	EN 301 489-1, EN 301 489-17, EN 300 330, EN 300 328, EN IEC 62311, EN 301 489-3;4G/ LTE: EN 301 908-1, EN 301 908-13, EN 301 489-52, EN 62368-1.

Interfaces and communication

Wi-Fi	2.412 to 2.483 GHz, IEEE 802.11 b/g/n.
Bluetooth	Bluetooth 5.0, 2.402 to 2.480 GHz.
4G/ LTE	Optional. LTE-FDD: B1 / B3 / B7 / B8 / B20 / B28; GSM: GSM 900/ DCS 1800
RFID	13.56 MHz, compliant with EN 300 330
Ethernet	RJ-45 connection; external crystal reference frequency 25 MHz and SPI interface communication frequency 33.3 MHz to 80 MHz.
Communication protocol	OCPP 1.6J.
Networking note	Ethernet and WiFi connect to the local network; all models support cloud. transmission, while cellular uploads directly via mobile network..
Vehicle-user control	Plug& Play, RFID, APP / platform control.

Installation and connection notes

Mounting concept	Embedded installation in a matching lamp pole.
Supply cable guidance	Manual recommends 1-phase 3 x 6 mm² and 3-phase 5 x 6 mm² or above, subject to construction length.
Communication cable guidance	Shielded network cable(Cat 5 / super class 5) for networking mode, subject to construction length.
Front-stage breaker note	We recommend the 40A breaker as the standard configuration. However, if you prefer a higher safety margin for long-term stability, the 63A option is also fully compatible and safe
Grounding	The equipment must be grounded during use.
Current-limiting note from setup correspondence	Unit was described as factory-set for 32 A. Physical DIP switch selects 32 A or 16 A; setup notes indicate 16 A limits power to approx. 11 kW on 3-phase or 3.68 kW on 1-phase.

Illustrative visuals

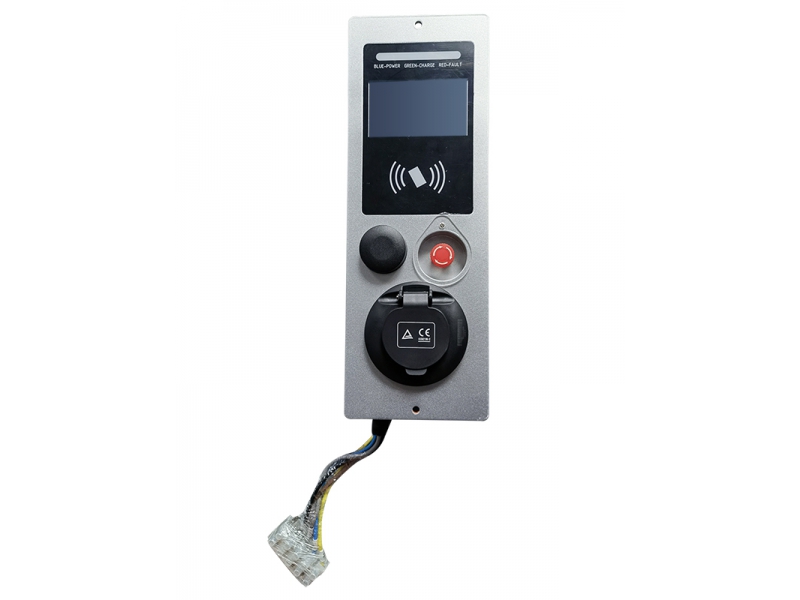

Product visual from manual

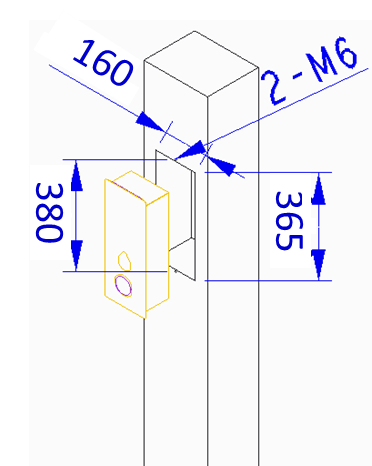

Type B connection drawing from manual (rectangle shell)

Request a quotation
Tell us your target market, required voltage (e.g. 230 V / 400 V) and quantity — our engineers reply within one working day.
Email: [email protected] | WhatsApp: +86 134 2131 0407

Smart lamp post EV chargers · Smart Lamp Post AC EV Charger · Europe Embedded AC EV Charger for Smart Lamp Posts · Smart street lamp post AC EV charger solution · Pole-integrated EV charging: bringing chargers into street-light poles

Frequently asked questions

What does this product do?

Embedded AC EV charger for smart street lamp posts in North America. It delivers up to 21 kW on 3-phase 380 V and also supports 110/240 V, with OCPP 1.6J, Wi-Fi/Bluetooth/Ethernet/RFID and optional 4G/LTE.

Do you support OEM and custom housing?

Yes — we manufacture in-house, so housing, colour and branding can be adapted to your market. Tell us your target country and required voltage and we will recommend a configuration.

Is OCPP supported?

Our networked chargers support OCPP 1.6J, so they integrate with standard back-end platforms without vendor lock-in.

What certifications do you hold?

Our chargers are CE and RoHS compliant, with IP ratings suited to outdoor installation. Specific certification documents are available on request.

What is the minimum order quantity and lead time?

It depends on the model and the degree of customisation. Send us your requirement and we will confirm MOQ and lead time within one working day.

How do I get a quotation?

Email [email protected] or WhatsApp +86 134 2131 0407 with your target market, required voltage and quantity — our engineers reply within one working day. You can also use our contact page.
